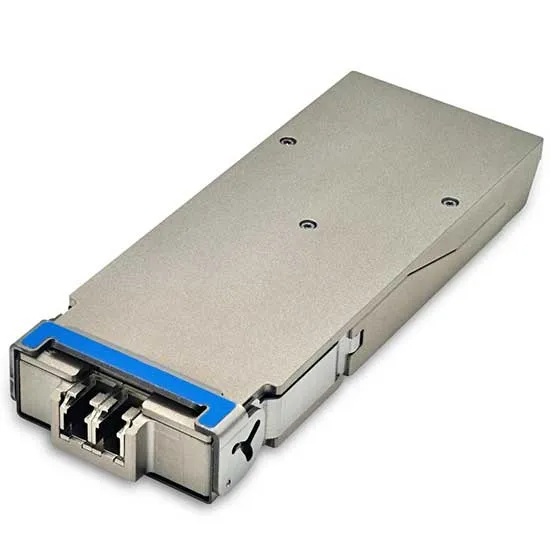

Innova CIS-CFP2-100G-LR4-IOT: 100GBASE-LR4 CFP2 Transceiver
The Innova CIS-CFP2-100G-LR4-IOT is a Cisco-coded 100GBASE-LR4 CFP2 optical transceiver, part of Networkser Group's Innova Optical Transceivers (IOT) range. It uses LAN-WDM technology, four 25G lanes near 1310 nm, to deliver 100G capacity over standard G.652 single-mode fibre at up to 10 km. Designed as a direct replacement for the Cisco CFP2-100G-LR4 in ASR 9000, NCS 5500, and compatible Cisco platforms.
Technical Specifications
- Form factor: CFP2
- Data Rate: 100GBASE-LR4 (4x25G LAN-WDM, 100 GbE aggregate)
- Wavelength: 1295.56 / 1300.05 / 1304.58 / 1309.14 nm (LAN-WDM)
- Connector: LC duplex
- Fibre Type: Single-mode (G.652)
- Maximum Reach: 10 km
- Operating Temperature: 0 to +70 deg C (commercial)
- Compliance: IEEE 802.3ba 100GBASE-LR4, MSA CFP2, OIF CFP2
Use Cases
Targeted at service provider edge routers, core switches, and carrier-grade platforms requiring CFP2 form-factor 100G LR4 optics. Drop-in replacement for Cisco CFP2-100G-LR4 in ASR 9000 series, NCS 5500, and CRS platforms.
Innova Brand & Warranty
Innova Optical Transceivers is Networkser Group's brand of MSA-compliant transceivers, quality-tested and field-recodable. The CIS-CFP2-100G-LR4-IOT is Cisco-coded and ships ready for immediate installation: no workarounds and no compatibility errors. Covered by Networkser Group's standard warranty. Contact Networkser Group if you need recoding for other platforms.
