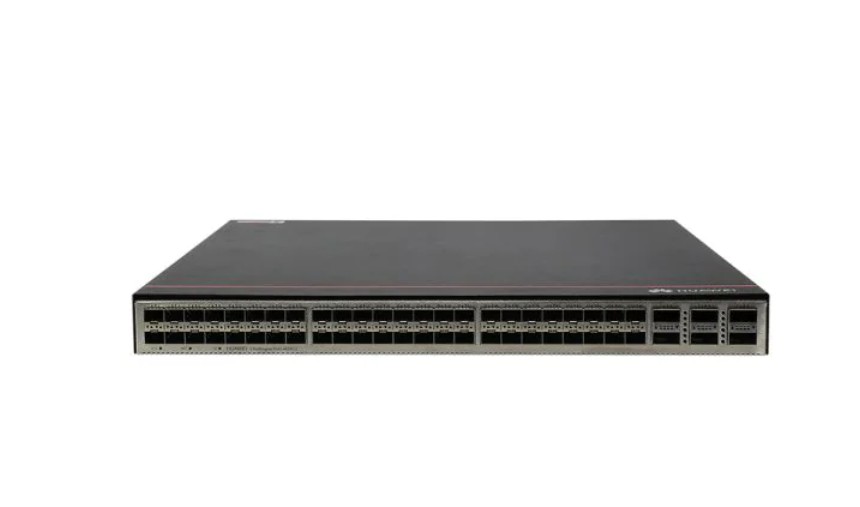

The Huawei CloudEngine CE6820-48S6CQ is a high-density 10G/100G fixed aggregation switch designed for data centre and enterprise network aggregation. With 48 x 10G SFP+ ports and 6 x 100G QSFP28 uplinks, it delivers outstanding bandwidth density for modern data centre architectures.
- Access Ports: 48 x 10G SFP+ (SFP+)
- Uplink Ports: 6 x 100G QSFP28
- Switching Capacity: Up to 2.4 Tbps
- Forwarding Rate: Up to 1,440 Mpps
- VXLAN Support: Yes - data centre overlay networking
- Routing: L2/L3, static routing, OSPF, IS-IS, BGP
- Management: CLI, SNMP, NETCONF, iMaster NCE
- Form Factor: 1U rack-mount, dual redundant PSU
